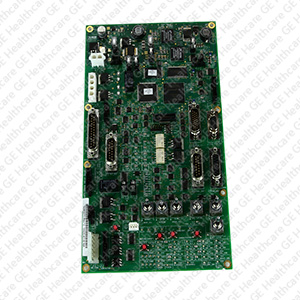

Gantry Table Control Board 3 Board Assembly


グローバル商品・部品番号	5245271
同等品従来品と同様にご使用いただける後継品です	5112470 5112470-2 5112470-3 5112470-4 5112470-5 5142177 5142177-2 5142177-3 5245271-20
製品カテゴリ	CT（コンピュータ断層撮影装置）
製品ファミリー	Optima 660
販売元	GE HealthCare

日付を選択してください

セカンドオピニオンの承認が必要

承認番号を入力して送信し、商品をカートに追加してください。

承認番号

Please enter approval number

承認番号が分かりませんか？800-437-1171に電話してください。
最初の3つのプロンプトにopt 1を入力し、システムIDを使用できるようにします。

カートに商品を追加し、承認番号なしで注文を送信した場合、
注文が出荷確認できる前にGEから連絡があります。

セカンドオピニオンの承認が必要

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

希望小売価格 : 価格はお問い合わせください

GE Healthcare Part Warranty

      Part Warranty (excluding Specialty Components as defined below).

1.1.  GE Healthcare Parts. Each GE Healthcare part will be free from defects in material and workmanship under normal use and service, and will perform substantially in accordance with GE Healthcare’s written specifications (as they exist on the date the part is shipped)for a period of 120 days for new, refurbished and repaired parts, and 90 days for harvested/used parts, starting on the delivery date of the part.

1.2.  Non-GE Healthcare Parts. Each non-GE Healthcare part will be free from defects in material under normal use and service. The warranty period is 90 days for new, refurbished and repaired parts, and 30 days for used parts, starting on the delivery date of the part.

Specialty Component Warranty.

2.1. GE Healthcare Specialty Components. Each GE Healthcare detector, probe, tube or image intensifier ("Specialty Component") will be free from defects in material and workmanship under normal use and service, and will perform substantially in accordance with GE Healthcare’s written specifications (as they exist on the date the Specialty Component is shipped) for the time-period identified in the table below starting on the delivery date of the Specialty Component.

2.2. Non-GE Healthcare Specialty Components. Each non-GE Healthcare Specialty Component will be free from defects in material under normal use and service for the time-period identified in the table below starting on the delivery date of the Specialty Component.

Specialty Component	Full New/Refurbished/Repaired Part Warranty (a)	Pro-Rata New/Refurbished/Repaired Part Warranty (b)	Used/Harvested Part Warranty
GE Healthcare X-Ray & Vascular Tubes Radiographic, Radiographic & Fluoroscopic, Vascular Mammographic, Bone Mineral Densitometry, Infinia Hawkeye MX150 Vascular, Performix™ 160A (MX160) Non-GE Healthcare Tubes	30 days 30 days 12 months 90 days	24 months 12 months N/A N/A	30 days 30 days 90 days 60 days
GE Healthcare Image Intensifier Tubes Non-GE Healthcare Image Intensifier Tubes	30 days 90 days	24 months N/A	30 days 60 days
GE Healthcare CT Tubes Performix™and Solarix branded tubes Plus branded tubes MAXIRay™ branded Tubes Non-GE Healthcare CT Tubes	12 months 24 months 12 months or 6,000 exams* 90 days	N/A N/A N/A N/A	90 days 90 days N/A 60 days
GE Healthcare Detectors Fixed Digital Detectors (XR, Vascular, Mammography), Wireless & Tethered Digital Detectors Non-GE Healthcare Detectors	12 months 90 days	N/A N/A	90 days 60 days
GE Healthcare Ultrasound Probes ** Purchased Probe Loaner Non-GE Healthcare Ultrasound Probes	12 months 6 months 90 days	N/A N/A N/A	90 days N/A 30 days

* The first to occur

** Refurbished/Repaired GE Healthcare Ultrasound Probes include a 6-month warranty and no Pro Rata warranty allowance

(a) The period following start of warranty during which a 100% warranty is provided.

(b) The maximum period during which a Pro Rata warranty allowance is provided. The Pro Rata warranty allowance is calculated as:

number of months between date of warranty commencement and date of failure

100%

complete warranty period

Customer must pay the then-current price of the Specialty Component replacement less the Pro Rata warranty allowance (a fraction of a month less than 15 days will be disregarded, and a fraction of a month equal to or greater than 15 days will be regarded as a full month).

Remedy. If Customer promptly notifies GE Healthcare of its claim during the warranty and makes the part or Specialty Component available, GE Healthcare will (at its option and subject to the foregoing terms) repair, adjust or replace (with new or refurbished/repaired) the non-conforming part or Specialty Component. The warranty for a part or a Specialty Component provided to correct a warranty failure is the unexpired term of the warranty for the repaired or replaced part or Specialty Component. If an exchange part or Specialty Component is provided, the original becomes GE Healthcare property and Customer must return it to GE Healthcare within a reasonable timeframe of replacement to avoid being billed for the non-returned part or Specialty Component. NO OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WILL APPLY.
Limitation. GE Healthcare has no obligation to Customer for warranty claims if Customer uses the part or Specialty Component: (a) for non-medical or entertainment use or outside the United States; (b) in combination with any software, hardware or services not recommended in writing by GE Healthcare; and (c) in a manner or environment for which GE Healthcare did not design or license it, or in violation of GE Healthcare’s recommendations or instructions. Warranty service does not include installation. In addition, the warranty does not cover: (i) defects or deficiencies from improper storage or handling, maintenance or use that does not conform to OEM specifications (e.g., accidental damage, improper cleaning, disinfecting, TEE bite marks), inadequate back-up or virus protection, cyber-attacks, or failure to maintain power quality, grounding, temperature and humidity within OEM specifications; (ii) repairs due to power anomalies or any cause external to the part or Specialty Component or beyond GE Healthcare’s control; (iii) payment or reimbursement of facility costs arising from repair or replacement of the part or Specialty Component; (iv) adjustment, alignment, calibration or planned maintenance; (v) lost or stolen parts or Specialty Components; (vi) parts and Specialty Components with serial numbers altered, defaced or removed; (vii) modification of the part or Specialty Component not approved in writing by GE Healthcare; and (viii) parts or Specialty Components immersed in liquid.

商品・部品概要

The Gantry Table Control Board 3 (GTCB 3) Assembly is one of the assembly parts of the power driver assembly, which is used in the Light Speed 5. X HP 60 CT scanner. It is placed on the power driver support positioning BSD lite. An IP core CAN controller interface IC is used to provide CAN communications to the Gantry. The CAN bus mega function is founded on the basic CAN principle and meets all constraints of the CAN-specification 2.0B. For buffering of received or transmitted messages, three 13 byte buffer are used. The GTCB has a HART interface circuit. The GTCB provides two modes of speed for upward and downward respectively. The Light Speed 5.X CT scanner is a premium-tier, 3rd generation CT scanner. It will support all clinical applications currently supported by the Light Speed product line. The distinguishing feature of Light Speed 5.X is the ability to simultaneously collect 16 rows of scan data. It provides unique data collection functionality and it is intended to be used for head and whole body computed tomography.

対応商品・部品

Optima 660

Optima 540

VCT

Revolution EVO

Lightspeed RT

Discovery 750 HD

Brightspeed Edge

Brightspeed Excel

Brightspeed Elite

Discovery ST (64 Slice)

Discovery ST (128 Slice)

Optima 520

技術仕様

Attributes	Values
Product Category	Computed Tomography (CT)
Equipment Type	Light Speed 5. x CT Scanner
Power Supply:
Voltage	+24 VDC
Current	7.5 A Maximum @ +24 VDC (180 W)
PCB (GTCB3 Board PB) Size:
Outer Dimensions	155 x 270 mm
Thickness	1.6 mm
Outer Layer	18 Micro - Meter
Inner Layer	35 Micro - Meter
Maximum Height (Except Service Switch)	20mm
Hardware Requirements:
Source Clock	50 MHz
FPGA	Cyclone II, EP2C35F484C7
CPU	Nios, Run at 32 MHz
Configuration Chip	CPLD (MAX 3256 - 144)
Internal Data Bus Width	32 Bit
Can IP Core	1 Mbps
Debug UART IP Core	UART / RS - 232
External SDRAM	32 Bit x 4 M, MT48LC4M32B2
External Flash ROM	8 Bit x 8 M, S29JL064H
External Watchdog	LTC 1726ES8 - 2.5
Internal Watchdog	CPLD Logic
Power Input	+24 V
Internal Power	+24 V, +12 V, +5 V, +3.3 V, +1.2 V
Power Output 1	+24 V, +5 V, +3.3 V
Power Output 2	+24 V
Environment Requirement:
Operating:
Temperature Range	0˚ C to 55˚ C
Temperature Gradient	< 20˚ C/Hour
Humidity Range	20 to 80% Relative Humidity (Non-condensing)
Humidity Range (Only Power-On, Non-operating)	20 to 100% Relative Humidity (Non-condensing)
Humidity Gradient	< 10% / Hour
Storage and Transport:
Temperature Range	- 40˚ C to 70˚ C
Temperature Gradient	< 20˚ C / Hour
Humidity Range	5 to 95% Relative Humidity (Non-condensing)
Humidity Gradient	< 30% / Hour

Attributes

Values

Product Category

Computed Tomography (CT)

Equipment Type

Light Speed 5. x CT Scanner

Power Supply:

Voltage

+24 VDC

Current

7.5 A Maximum @ +24 VDC (180 W)

PCB (GTCB3 Board PB) Size:

Outer Dimensions

155 x 270 mm

Thickness

1.6 mm

Outer Layer

18 Micro - Meter

Inner Layer

35 Micro - Meter

Maximum Height (Except Service Switch)

20mm

Hardware Requirements:

Source Clock

50 MHz

FPGA

Cyclone II, EP2C35F484C7

CPU

Nios, Run at 32 MHz

Configuration Chip

CPLD (MAX 3256 - 144)

Internal Data Bus Width

32 Bit

Can IP Core

1 Mbps

Debug UART IP Core

UART / RS - 232

External SDRAM

32 Bit x 4 M, MT48LC4M32B2

External Flash ROM

8 Bit x 8 M, S29JL064H

External Watchdog

LTC 1726ES8 - 2.5

Internal Watchdog

CPLD Logic

Power Input

+24 V

Internal Power

+24 V, +12 V, +5 V, +3.3 V, +1.2 V

Power Output 1

+24 V, +5 V, +3.3 V

Power Output 2

+24 V

Environment Requirement:

Operating:

Temperature Range

0˚ C to 55˚ C

Temperature Gradient

< 20˚ C/Hour

Humidity Range

20 to 80% Relative Humidity (Non-condensing)

Humidity Range (Only Power-On, Non-operating)

20 to 100% Relative Humidity (Non-condensing)

Humidity Gradient

< 10% / Hour

Storage and Transport:

Temperature Range

- 40˚ C to 70˚ C

Temperature Gradient

< 20˚ C / Hour

Humidity Range

5 to 95% Relative Humidity (Non-condensing)

Humidity Gradient

< 30% / Hour

同等品:

以下、同等品・アイテムの詳細をご紹介いたします。同等の製品およびハイパーリンクのないアイテムは参照のみを目的としてリストされており、オンラインでは購入できません。

同等品	同等商品・部品の詳細
5112470	GTCB BOARD ASSY Positioning GT
5112470-2	GTCB BOARD ASSY Positioning GT 5112470-2
5112470-3	5112470-3
5112470-4	5112470-4
5112470-5
5142177	5142177
5142177-2	5142177-2
5142177-3	Gantry Table Control Board 2 (GTCB2) Assembly Positi
5245271-20	GTCB3 BOARD ASSY
